Alignment Guides

extension Element {
  func alignmentGuide(_ horizontalAlignment: HorizontalAlignment, computeValue: @escaping @Sendable (ViewDimensions) -> CGFloat) -> Element
  func alignmentGuide(_ verticalAlignment: VerticalAlignment, computeValue: @escaping @Sendable (ViewDimensions) -> CGFloat) -> Element
}

Alignment guides allow you to control how views align within a container like HStack, VStack, or ZStack. By default, these stacks align their children based on standard alignment values (like .center, .leading, or .top). However, you can use alignment guides to customize alignment behavior by defining your own rules for how each child should be positioned.

Propagation

Of note, alignment guides for default types are not recognized beyond the first multi-child container, however custom alignment guides are. If you need complex alignment behavior spanning more than one tier of layout container, create a custom alignment type for full control here. The example below does this.

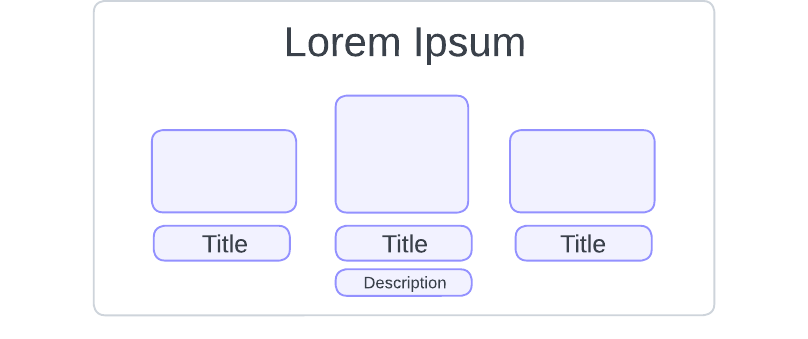

Examples

extension VerticalAlignment {
  private struct EmojiTitleAlignment: AlignmentID {
    static func defaultValue(in context: ViewDimensions) -> CGFloat {
      context[VerticalAlignment.bottom]
    }
  }
  static let emojiTitle = VerticalAlignment(
    EmojiTitleAlignment.self
  )
}

var body: Layout {
  VStack(spacing: 30) {
    titleView
    HStack(alignment: .emojiTitle, spacing: 16) {
      for emojiViewData in emojiViews {
        VStack {
          emojiViewData.emojiView
          emojiViewData.emojiTitleView
            .alignmentGuide(.emojiTitle) { _ in 0 }
          emojiViewData.emojiDescriptionView
        }
      }
    }
  }
}

Use Cases

Alignment guides are a great tool to use when a particular alignment type should mean something slightly different for your view. Perhaps your view has some decoration beneath the focal element, but .bottom alignment should apply to the focal element and not the content below it.

Or, perhaps you'd like .center horizontal alignment, but some views need adjustment to match this behavior. While this is possible via other means, specifying alignment guides can be a natural, easy way to accomplish this.
