Fixed Frame

extension Element {
  func frame(width: CGFloat? = nil, height: CGFloat? = nil, alignment: Alignment = .center) -> Element
}

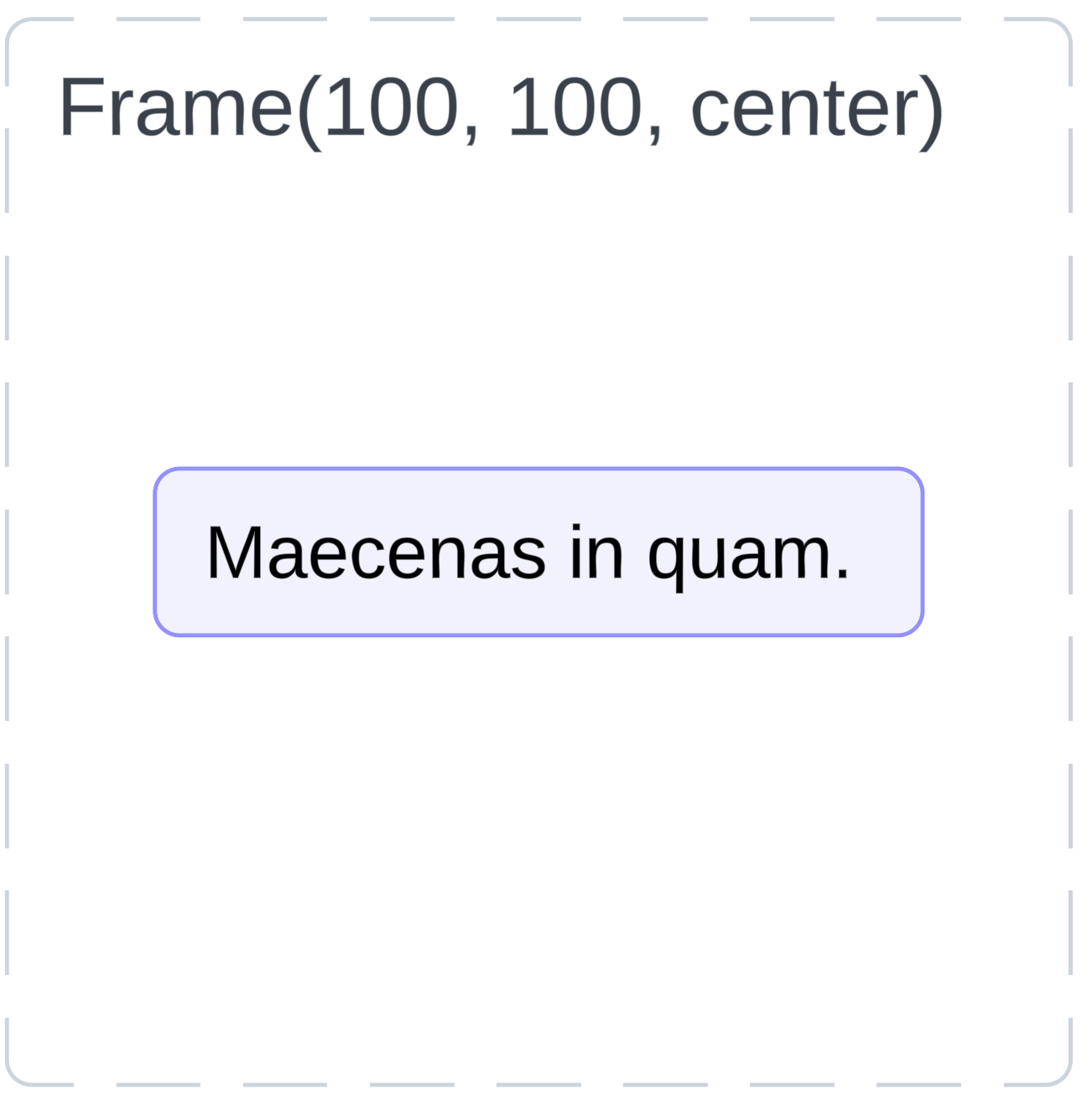

The Fixed Frame positions its child element inside an invisible container of a given size. If you omit a size (or pass nil), the frame will use the sizing behavior of its child element for that axis. When using this method, you must provide at least one size constraint.

Frame doesn't change the size of the view

The Frame modifier does not directly change the size of its child view but acts like a "picture frame." It proposes the size to the child view, but the child may choose to have a smaller size. Therefore, the Frame modifier uses the alignment parameter to position the child within its own size.

Use resizable modifier

To enforce a view uncoditionally acquire the size of the frame, wrap it with the resizable modifier.

var body: Layout {
  HStack {
    faceImageView
      .resizable()
      .frame(width: 40, height: 40)
    label
  }
}

Alignment

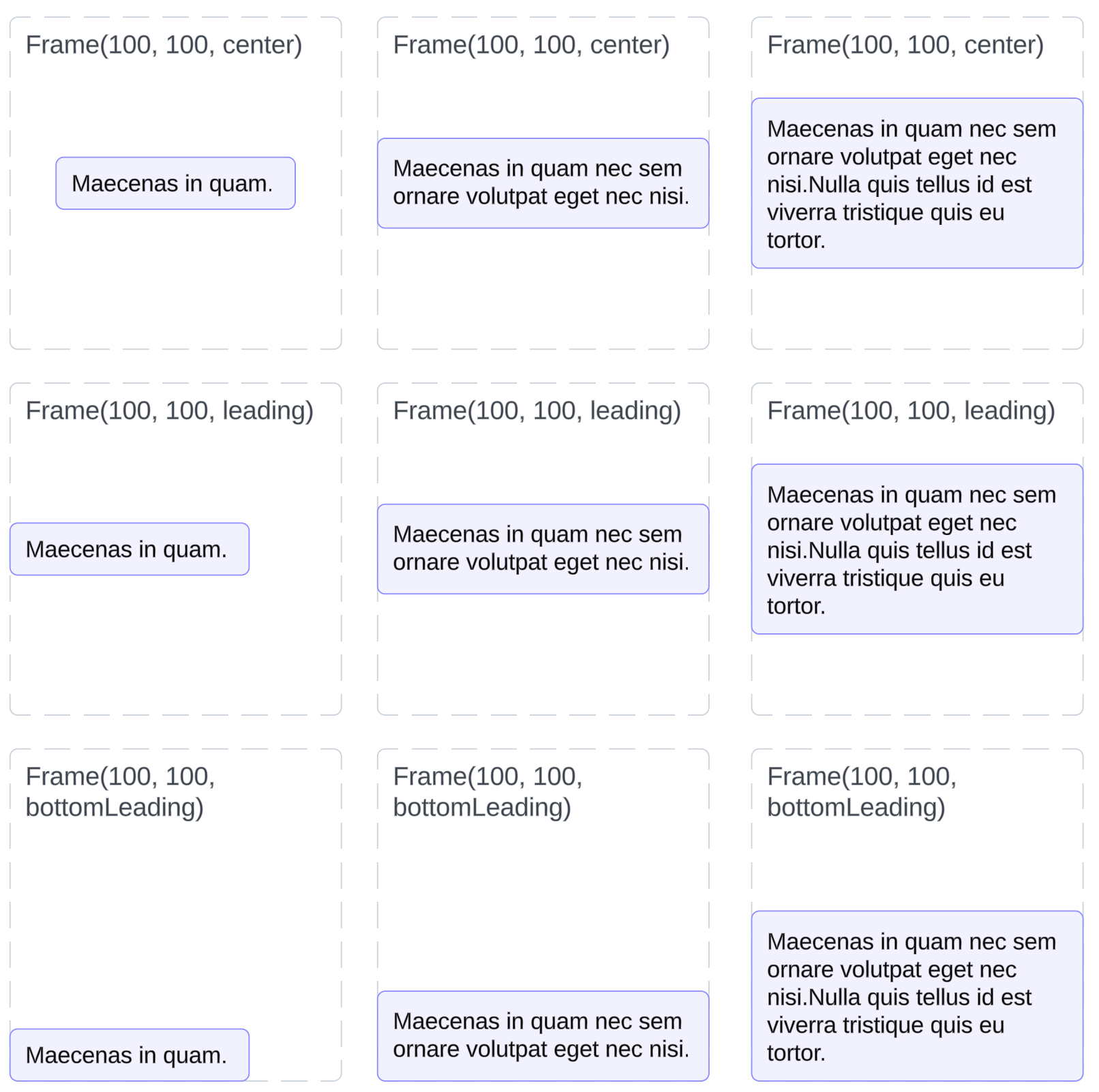

The frame allows you to control the position of the child view within it's space with the alignment parameter. See the image below demonstrating the frame with various alignments and labels.

Alignment​

Alignment
