VFlow

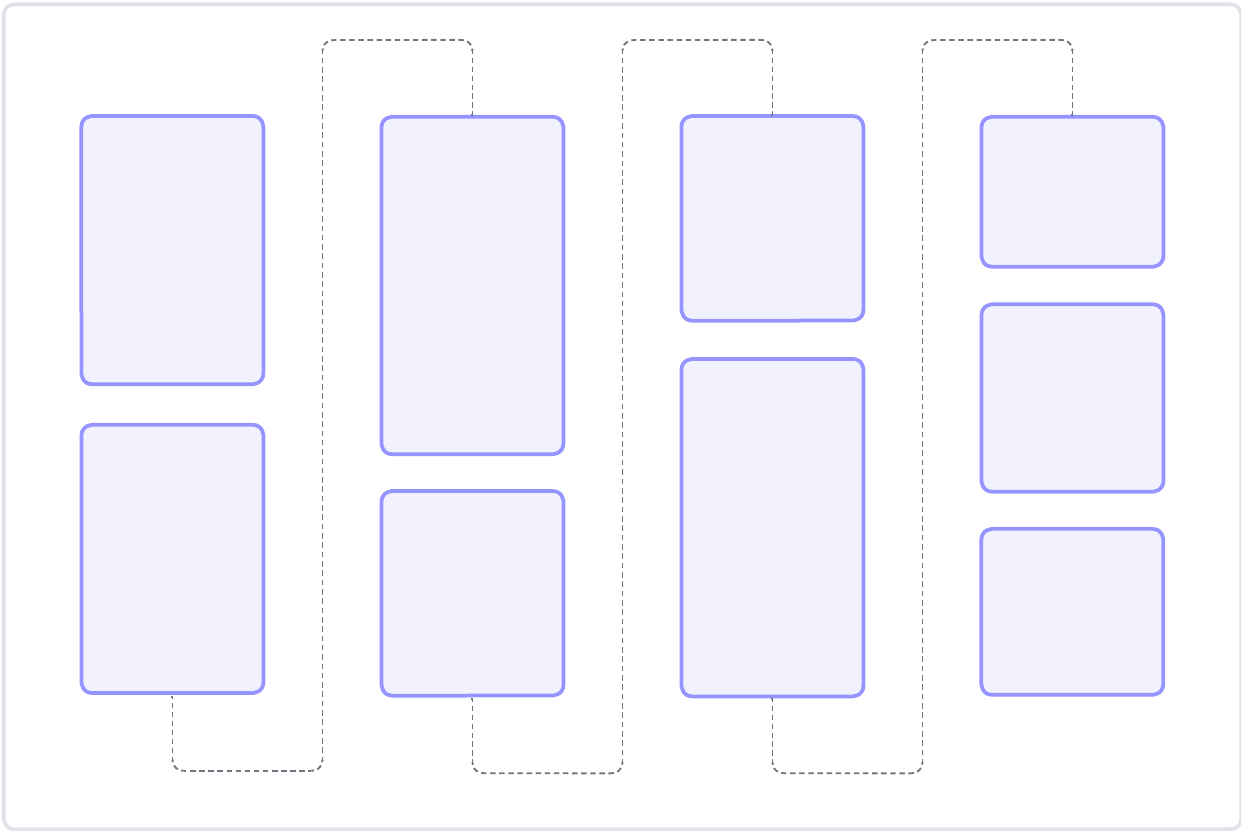

VFlow is a multi-line VStack that starts a new line every time elements don't fit in the bounding space.

public func VFlow(
  itemAlignment: HorizontalAlignment = .center,
  lineAlignment: VerticalAlignment = .center,
  itemSpacing: CGFloat = 0,
  lineSpacing: CGFloat = 0,
  @FastArrayBuilder<Element> children: () -> [Element]
) -> Element & Layout
var body: Layout {
  VFlow {
    icon
    label
    Button
  }
}

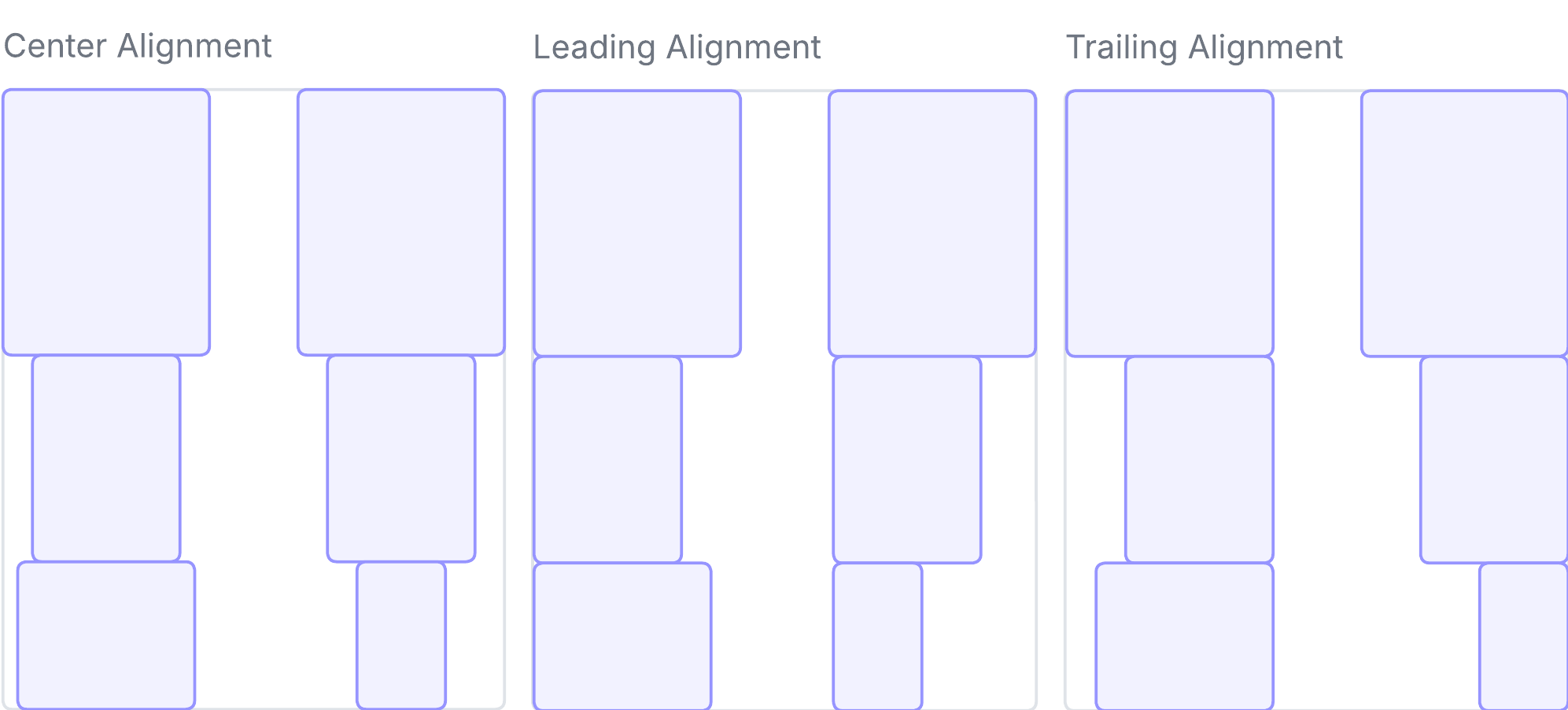

Item Alignment​

Items within a line can be aligned horizontally using the itemAlignment parameter. The default value is .center

var body: Layout {
  VFlow(itemAlignment: .leading) {
    icon
    label
    Button
  }
}

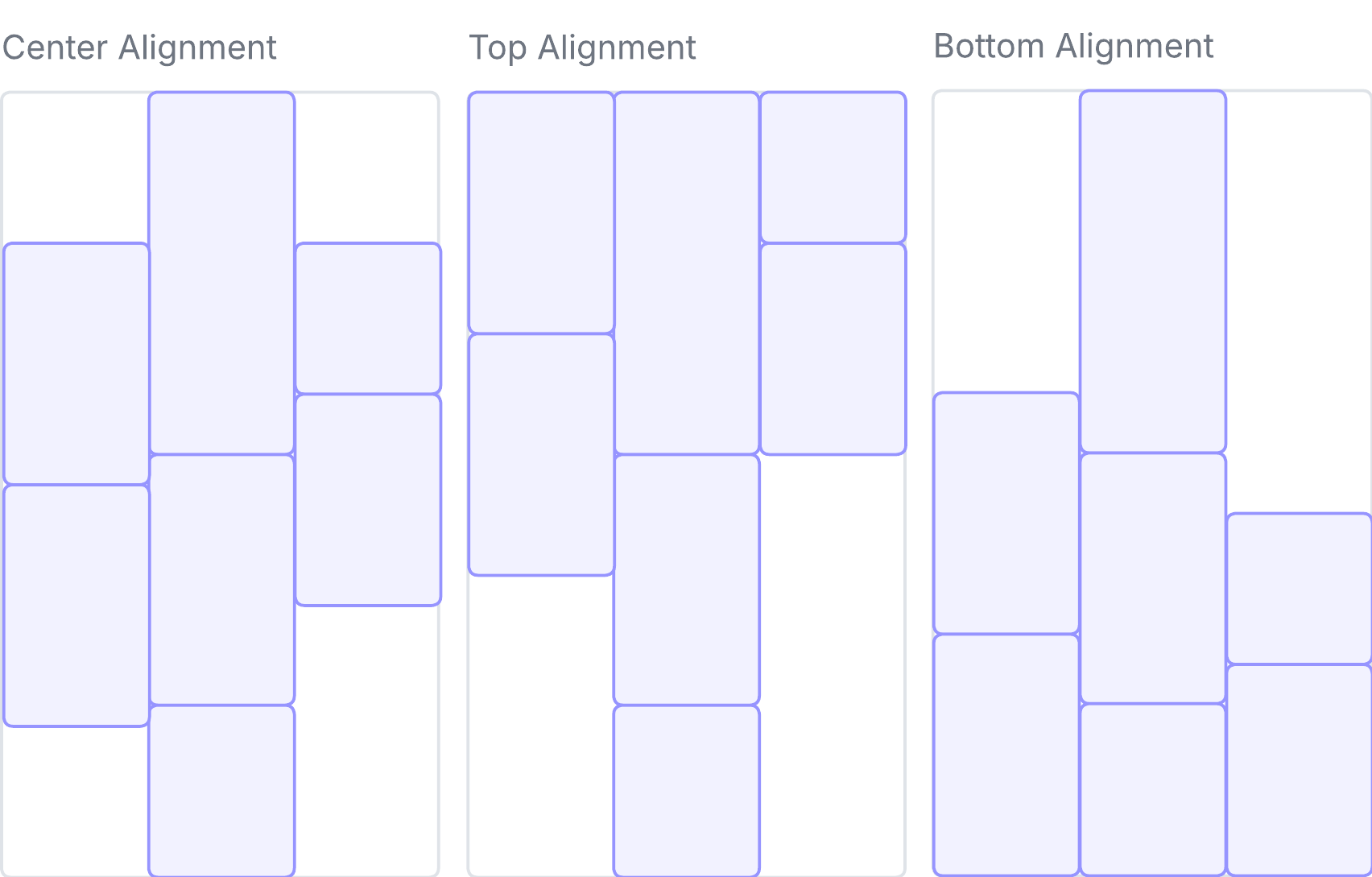

Line Alignment​

Similarily, lines can be aligned vertically using the lineAlignment parameter. The default value is .center

var body: Layout {
  HFlow(lineAlignment: .center) {
    icon
    label
    Button
  }
}

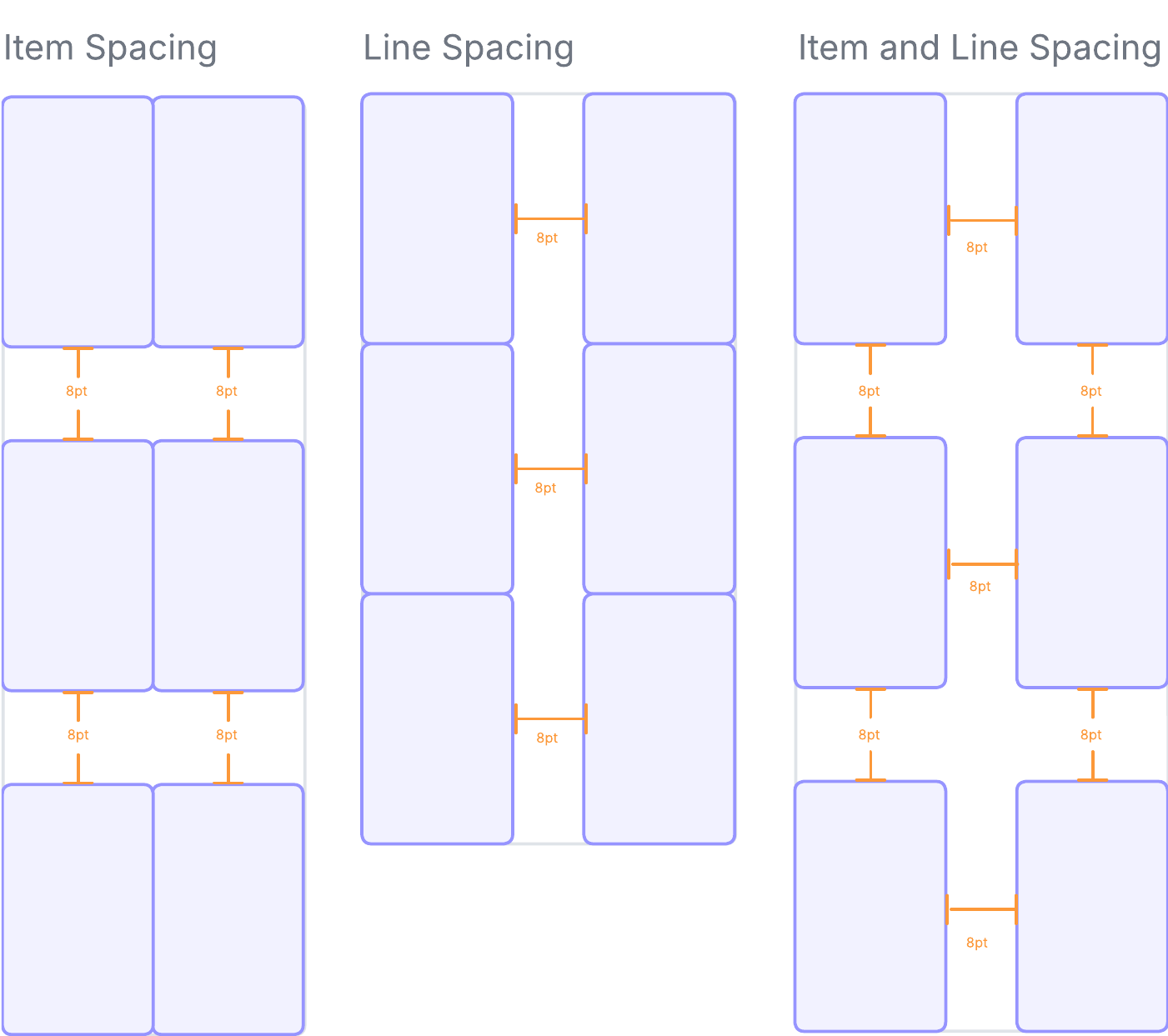

Spacing​

A fixed amount of spacing can be added between each item using the itemSpacing parameter or betweeen each line using the lineSpacing parameter. The default value is 0.

var body: Layout {
  HFlow(itemSpacing: 8, lineSpacing: 10) {
    icon
    label
    Button
  }
}

Performance Considerations​

VFlow measures each child element exactly once.

note

Spacer Element cannot be used with VFlow
